| Brand Name : | Haida |
| Model Number : | HD-A505s-1500 |
| Certification : | ISO |
| Price : | Negotiable |
| Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability : | 300 Sets per Month Haida |
| Delivery Time : | 20 days after order confirmed |

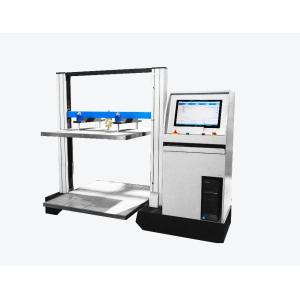

Computer Servo Carton Compressive Test Machine/Electronic Carton
Compression Tester
A502 Box Compression Tester.pdf
Product Description:
Computer Servo Box Compressive Tester is used for measuring the pressure strength of
cartons,containers,etc, for inspecting the pressure-resistance and
strike- endurance of packing materials during transportation or
carry.
Specifications:
| Computer Servo Box Compressive Tester | |
| Model | HD-A505S-1500 |
| Unit (switchable) | Kg, Lb, N |
| Capacity (optional) | 2 T ,5T |
| Load Resolution | 1/100,000 |
| Stroke (exclude the grips) | 400 mm |
| Load Accuracy | ≤0.5% |
| Test Space (L×W×H) | 1300×1500×1500mm |
| Speed of Compression | 10 ± 3 mm/min |
| Operation Mode | PC |
| Report Items | Serial number, Peak value, Average value, Designated holding pressure value; all memorable |
| Structure | Panasonic Servo Control (Japan); Imported screw rod ;4 sensors; LED display |
| Dimension (L×W×H) | 2370×1500×2100mm (can be custom made) |
| Power | 1ø, 220v/ 50Hz |
| Weight | Approx. 850kg |
| Safety Devices | Overload protection, overvoltage protection & limited position protection device |
| Standard | TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 |
Design criteria:
TAPPI-T804,JIS-20212,GB4857.3.4,
ASTM-D642, QB/T1048, BS EN ISO 12048,
GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,
GB/T4857.4
Features of Computer Servo Box Compressive Tester :
Using a single-screen operation; do not need to switch the screen;
With three languages in Simplified Chinese, Traditional Chinese and
English, the software interface can be switched easily;
Adopting windows platform, and all the parameter settings can be
processed in the dialog box, and it operates easily;
The pattern of Test reports can be self-designated; test data can
be displayed directly in the main screen;
Choosing translational, comparative mode at the same time to make a
number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric
are switchable;
With self-return & auto-correction function;
With automatic magnification function, in order to achieve the most
appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis
function;
It can do test of compression, bending, pressure holding & fatigue.
With high precision and accuracy and reasonable price, it can test
the crush instantaneously and stop automatically.
|
