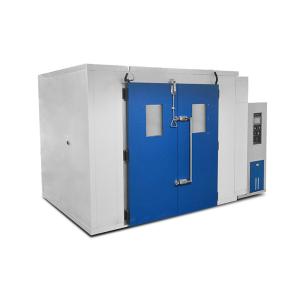

Walk In Environmental Test Chamber With Climatic Programmable
Controller
HD-E705-7 Walk-in Chamber.pdf
Product Description:
Walk in environmental test chamber used to test various types of materials for their tolerances under
condition of heat, cold, dry,humidity.
Application: For all types of electronic products quality inspection , electric
appliance, and
communication, instrument, automobile, plastic, metal, food,
chemical, building materials,
medical and aerospace industries products.
Specifications
| Specification | Hd-e705 |
| Temperature Range | -50c To +100c |
| Humidity Range | 40% To 98% Rh |
| Dimension (Internal) (w x d x h) | 1500 x 1500 x 3000 Mm |
| Dimension (External) (w x d x h) | 2850 x 1700 x 3200 Mm |
| Ramp | Variable, Temp. 0~5c / Min & Humidity 0~5%/Min In Average, No Load |
| Accuracy | Temp. ±1c, Humidity ±2.5%Rh |
| Interior Walls | Stainless Steel 304 |
| Exterior Walls | Cold Rolled Stell Plate With Baking Finish |
| Temperature & Humidity Measurement And Controller | 32 Bit Control And Monitoring System. Interface Facility With Rs232 Programmable Temp. Humid. Controller |
| Viewing Window | Multi Pane Glass Window Size |
| Port Holes | 50 Mm Diameter For Wire Routing |
| Power Supply Requirement | Three Phase, Ac380 v ± 10 %, 50 Hz |
| Sound Pressure Level | <72db (a) |
| Condenser Cooling | Water Cooled |
The table parameters is for the company Standard Model parameters,
we support customer customization parameters
Cooling system
Cascade type, refrigeration system with hermetically sealed
refrigeration
cycles with environment and ozone friendly and chloride free
refrigeration
Door
1 lockable front opening, with double door latch easy to open
2 with silicon gasket for perfect sealing
Recorder & pc connectivity
1 standard rs -232 interface for pc connectivity
2 rs-232 cable for pc connectivity along with pc connectivity
software
Temperature measuring and control system
1 the temperature measuring and control system adopts
microprocessor system and provided with touch panel for monitoring
and digital display:
supplied with support software
software is capable to visualize and graphical anallyse the
measured & recorded value.
a. graphical representation and digital display and control of set
and actual values
b. digital input and display of temperature in degree centigrade
c. fault diagnosis system
d. 120 stroage of programmes
2 have adjustable safety cut-out against high and low temperature
3 facility to programme temperature measuring using sensor pt100
After-service:
If you face any problems in future during testing process we
promise we will give you a reply within 48 hours and solution
provide within 3 working days. We can offer operation video and
English operation muanual. We can provide video-con.
FAQ
Why choose us?
1. Considerate Service Different countries plugs, manually change
the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem
controller freely, even it's not from our factory. What you need to do is to send us the
controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract,
which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air
bubble film before put them into the wooden case, which not only has good shock
absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,
moisture corrosion, good transparency etc.
