    Tensile Strength Testing Machine With Computer Control For Adhesive Tape Test

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-B609B-S
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Tensile Strength Testing Machine With Computer Control For Adhesive Tape Test

    Tensile Test Machine With Computer Control For Adhesive Tape Test


    Product File:

    Tensile Test Machine is applicable for tests of force load, Insertion and withdrawal, destruction in such industries as rubber and plastic, light industry-textile, constructional door and window, composite materials, electric wire and cable, parts and accessories for automobile, power machinery, scientific research institutes, etc.

    Standard Features

    ItemDescription
    Frame capacity30kg
    Load cell brand

    Germany brand load cell for high accuracy
    30kg (5,10kg are optional)

    Load accuracy0.5% F.S
    Control systemPC with windows 7 system
    MotorAdjustable-speed motor with reduction box, high-precision mechanical ball screw rod
    Force readingkgf, Ibf, N, KN, T etc
    Vertical test space400mm including fixture
    Test speed0.1~300mm/min (adjustable by PC)
    SoftwareTM 2101
    Curves displayLoad- elongation, Elongation-time, Time-elongation, Stress-strain
    Data displayMax. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
    Safety features

    E-Stop
    Over-load protection
    Upper and lower limit switches
    Load sensor with automatic retreat

    The table parameters for the company Standard Model parameters, we support customer customization parameters


    Applications

    1. Tested sample: adhesive tapes
    2. Different test with different grips: 90 degree peel, 180 degree peel and loop tack test.
    3. Deformation under defined load: Test deformation under defined load of tested sample
    4. Load under defined deformation: Test load under defined deformation of tested sample
    5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

    Adhesives Tape/Pressure Sensitive Tape

    • EN 1719: Loop Tack Test
    • ASTM D3654: Shear Adhesion Test
    • ASTM D3759: Tensile &Elongation Test
    • FTM: 180&90 Degree Peel Test, Loop Tack
    • EN 1939, ASTM D3330: 180&90 Degree Peel Test
    • ISO 11339, ASTM D1876, ASTM F2256: T-type Peel Test
    Tensile Test Machines Clamps
    tensile test machine

    Our company Introduction:
    HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.

    After-service:

    If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.


    FAQ

    Why choose us?

    1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

    2.Excellent After sale Service:
    18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.

    3.Commitment:
    We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

    4.Good Packaging:

    Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.


    How to Contact Us?

    Please Send your inquiry Details in the below for our quotation,Click "Send" Now!

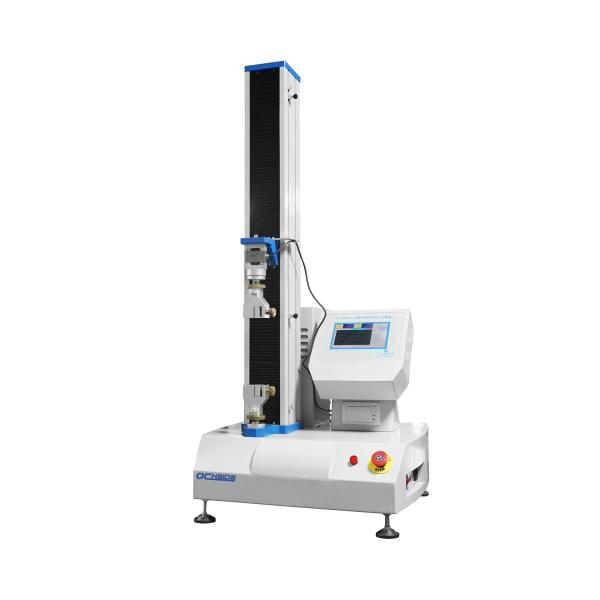

    Quality Tensile Strength Testing Machine With Computer Control For Adhesive Tape Test for sale
