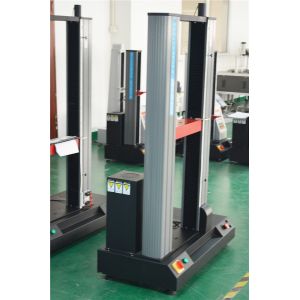

Single Phase Celtron Load Cell Tensile Test Equipment Fabric Tensile Test Use

    Buy cheap Single Phase Celtron Load Cell Tensile Test Equipment Fabric Tensile Test Use from wholesalers

    Buy cheap Single Phase Celtron Load Cell Tensile Test Equipment Fabric Tensile Test Use from wholesalers
    • Buy cheap Single Phase Celtron Load Cell Tensile Test Equipment Fabric Tensile Test Use from wholesalers
    • Buy cheap Single Phase Celtron Load Cell Tensile Test Equipment Fabric Tensile Test Use from wholesalers
    • Buy cheap Single Phase Celtron Load Cell Tensile Test Equipment Fabric Tensile Test Use from wholesalers
    • Buy cheap Single Phase Celtron Load Cell Tensile Test Equipment Fabric Tensile Test Use from wholesalers
    • Buy cheap Single Phase Celtron Load Cell Tensile Test Equipment Fabric Tensile Test Use from wholesalers
    • Buy cheap Single Phase Celtron Load Cell Tensile Test Equipment Fabric Tensile Test Use from wholesalers

    Single Phase Celtron Load Cell Tensile Test Equipment Fabric Tensile Test Use

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-B603
    Certification : CE,,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 100 Piece / Pieces Per Month
    Delivery Time : 15 Days After Order
    • Product Details
    • Company Profile

    Single Phase Celtron Load Cell Tensile Test Equipment Fabric Tensile Test Use

    Single Phase Celtron Load Cell Tensile Test Equipment Fabric Tensile Test Use


    tensile strength testing equipmentHD-B604B-S Universal Test Machine.pdf


    Product Description
    Single Phase Celtron Load Cell Tensile Test Equipment Fabric Tensile Test Use is mainly applied to test all kinds of fabrics, such as plain dyed, yarn-dyed poplin, dyed grid tweed, oxford, chambray, denim, and khaki, twill, herringbone, gabardine, satin, dobby, jacquard cloth, and so the tensile, compression, bending, shear, peel, tear, extending two (need to reprovision extensometer) and other tests.

    Main features
    Displacement measurement using import photoelectric encoder,
    Controller based on embedded single chip microprocessor structure
    Built-in powerful control software, measurement, control, and computing, storage inone.
    With automatic calculation of stress, elongation (need to add with Gage), tensile strength, modulus function, automatic statistics;
    Automatically record the maximum points, breaking point, specify the force and elongation;
    Using the test process and test the dynamic display of the curve, and for data processing, after the test through graphical data analysis module on curve amplification edit and printable reports, products reach the international advanced level.


    Test principle
    Sample clamped in a fixture between the two fixture, relative motion between two fixtures, through the dynamic clamping force on the head sensor and machine built-in displacement sensors, collected during the test force and displacement, to calculate properties such as tensile strength, tear strength and deformation of the sample rate indicators.

    Tensile testing machine lazy pointer back to zero lag or instability
    1, the pointer bearings, spindle bearings rust or oil: Clean or replace the bearings.
    2, the gear lever or gear lever and gear deformation is not engaged: straightening gear lever or cleaning, repair gear, sheave and other transmission components.
    3, the buffer valve is dirty: Clean the cushion valve.




    Main Technical Parameters

    Items

    Specification

    Sensor

    Celtron load cell

    Capacity

    5, 10, 20, 25, 50, 100, 200kg

    Unit Switchover

    G, KG, N, LB

    Display Device

    LCD or PC

    Resolution

    1/250,000

    Accuracy

    ±0.5%

    Max. Stroke

    1200mm (excluding fixture)

    Test Speed

    0-500mm/min (adjustable )

    Motor

    Taiwan 400w servo motor

    Screw

    High Precise Ball Screw

    Elongation Accuracy

    0.001mm

    Power

    1phase,AC220V, 50HZ

    Weight

    Approx.85kg

    Accessories

    One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual



    The instrument configuration
    Standard configuration: host, computer, universal fixture, professional software, communication cable
    Option: standard roller, test panel, sampling knife, floating roller fixture, non-standard fixture

    tensile strength testing equipment

    tensile strength testing equipment


    Thanks Letter:
    tensile strength testing equipment
