    IP6X Simulation Environment Dust Spray Test Chamber

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-E801
    Certification : ISO9001: 2008, CE, ...
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

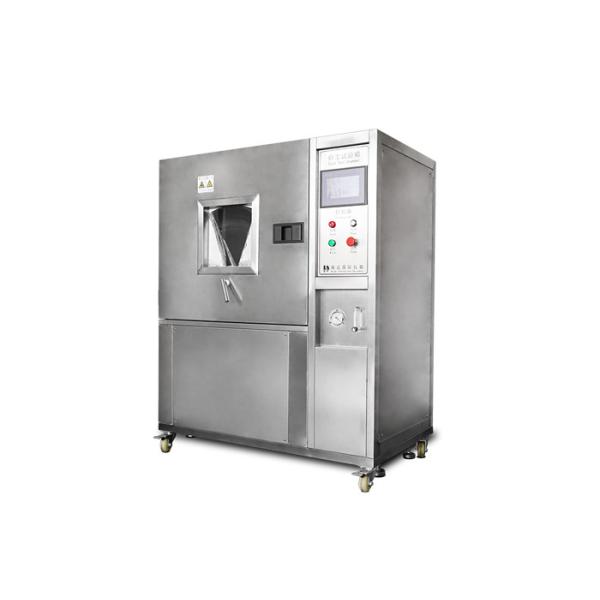

    IP6X Simulation Environment Dust Spray Test Chamber

    IP6X Simulation Environment Dust Spray Test Chamber

    Product description:
    The equipment is widely used to do dust resistance of electronics, auto components, sealed products when using, storage and transportation.

    Main technical parameter:

    ItemSpecification
    Inner chamber size120 * 120 * 120cm
    External size170 * 150 * 190cm (approx.)
    Air pressure86~106kpa
    Studio temperatureRT~60'C, adjustable
    Amount of talcum powder

    2kg per cubic meter of the test chamber volume
    Can not have been used for more than 20 tests

    Powder typeTalcum powder
    Aspirator flowing quantity0~6L/min
    Pressure tolerance0~2kpa
    Metal net sizeWire diameter 50um, width of a gap between wires 75um
    Testing time0~999h88m99s, adjustable
    BlowerCentrifugal fan
    Blowing dust cycleInterval control, adjustable
    Chamber materialSUS#304 stainless steel
    Door materialTempering glass

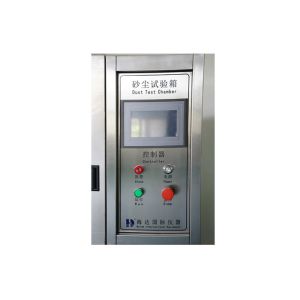

    Control interfaceLCD touch screen

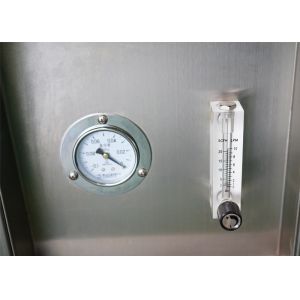

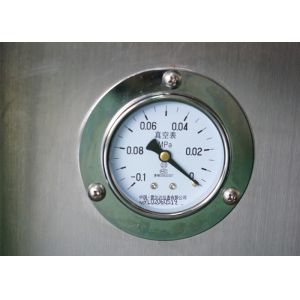

    Vacuum systemPressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump
    Weight400kg
    Power supplyAC380V, 50/60Hz, three phase



    Chamber structure:

    1, Chamber material: SUS#304 stainless steel;
    2, Transparent window is convenient to observe specimen during testing;
    3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;
    4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.


    rain spray test equipment
