    Comprehensive Textile Testing Equipment for Strength Testing of Single Yarn Made from Natural Fibers Cotton Wool and Jute

    Ask Lasest Price
    Brand Name : Haida
    Model Number : 5142-HD
    Certification : ISO9001: 2008, CE, ...
    Price : Negotiation
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : 15 days after order confirmed
    • Product Details
    • Company Profile

    Comprehensive Textile Testing Equipment for Strength Testing of Single Yarn Made from Natural Fibers Cotton Wool and Jute

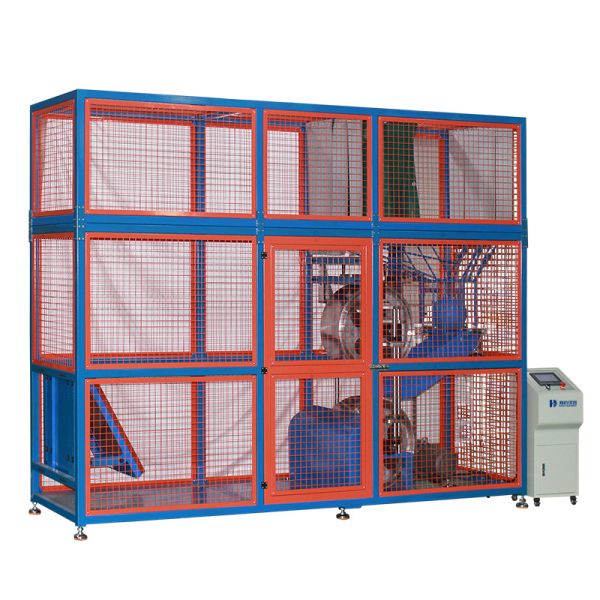

    EQUIPMENT DETAILS OF 5142-HD Ball Dynamic Impact Tester

    APPLICATIONS

    This test is used to assess the dynamic impact resistance of basketballs, soccer balls, volleyballs, and handballs. Two high-speed rotating drums, positioned opposite each other, propel the specimen at high speed through friction and compression. The specimen impacts a rebound plate, which then bounces it back into a receiving funnel. Under gravity, the force transfers the specimen to the launching drums, where it is launched again. After a set number of tests, the pressure changes within the specimen are checked, along with any signs of cracking, implosion, peeling, delamination, thread breakage, or deformation.

    STANDARD SPECIFICATION
    ItemDescription
    Drum DimensionsCenter 600mm, Height 250mm
    Angle between Rebound Plate and Ground60°+ 2°
    Distance between Drum and Rebound Plate1950°+ 50mm
    Impact Distance2500°+ 50mm
    Drum Speed(340~450) ± rpm
    Spacing ScaleMinimum graduation 1mm
    Upper and Lower Drum Spacing130~180mm (Adjustable)

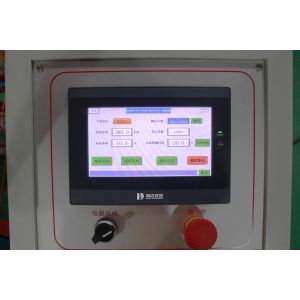

    Display and Control SystemPLC + HMI (7-inch Touchscreen)
    Initial Velocity at Launch Point≥50km/h
    Dimensions330*90*2500 cm(W*D*H)
    Control Box37*58*112mm
    Weight1400kg
    Power Supply3phase AC380V,50/60Hz
