    Highly Precise Thermal Conductivity And Diffusivity Measurement With Rubber Plastic Test / Thermal Conductivity Testerthermal Diffusivity / Equipment

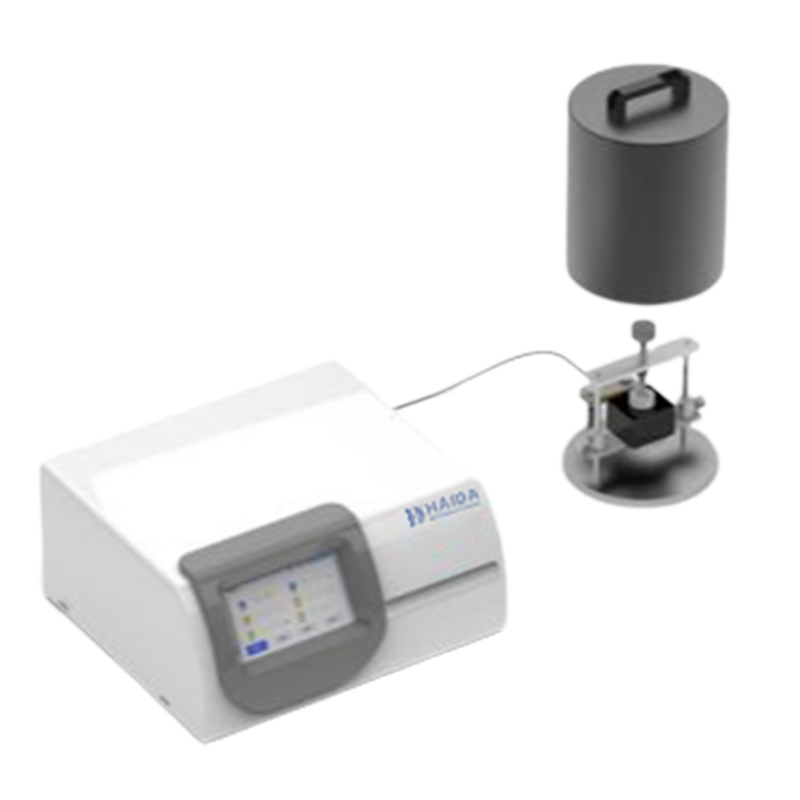

    HD-DRAS Thermal Conductivity Tester

    (TPS Method)

    Description:

    Transient Planar Source Technology (TPS) is a method for measuring thermal conductivity. It is based on ISO 22007-2-2008, ASTM D 5334/D 7984/D 5930, GB/T 32064-2015, GB/T 42919.1-2023 and so on standards, and meets the test of materials in different forms, such as liquid, solid block, paste, powder, film, etc.



    Technical Parameters

    ItemParameters
    Thermal conductivity range0.00001—50W/(m*K)
    Accuracy0.0001W/(m*k)
    Measurement temperature range-30℃~200℃
    Test probe2 high-precision probes, high temperature resistant
    Sample stateCan test liquid, solid block, paste, powder, film, etc.
    Repeatability error value≤1%
    Measurement time≤160S
    Total power<300W
    Control systemTouch screen(Chinese/English)
    Solid sample specifications

    No. 1 probe sample size ≥7.5mm*7.5mm*3.75mm

    No. 2 probe sample size ≥15mm*15mm*7.5mm

    Liquid and powder sample specificationsMatching sample fixture, capacity: 18ml
    StandardsISO 22007-2-2008, ASTM D 5334/D 7984/D 5930, GB/T 32064-2015, GB/T 42919.1-2023
